SINOARS WELDING STUDS
Distributors in UAE

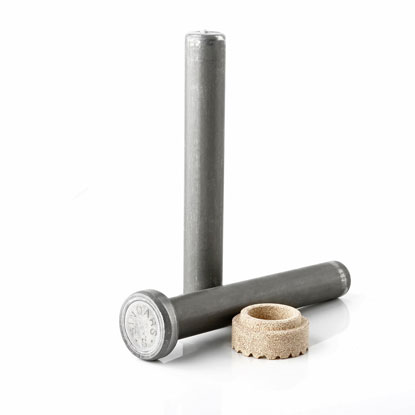

Shear Connector, Shear Stud SD
Shear Connector is one of the typical applications of arc stud welding technology, which is composed of shank, cheese head and welding end with aluminum arc flux.

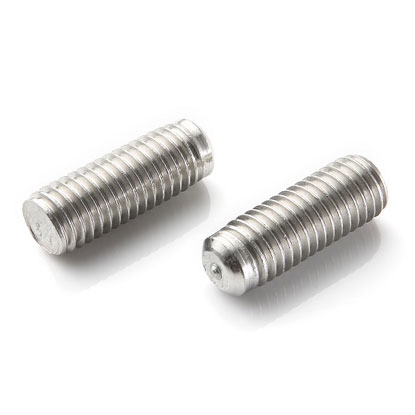

Drawn Arc Threaded Stud With Reduced Shaft, RD
Sinoars RD threaded studs have a reduced base α, to make the weld collar diameter similar to the thread diameter, which allows the use of smaller holes, the weld strength is determined by the reduced base but not the thread area.

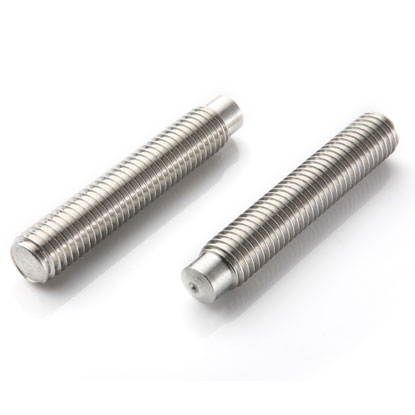

Drawn Arc Virtually Threaded Stud MD
Sinoars MD Virtually Full Threaded Stud have a very short unthreaded part, but this part is all melted into the weld collar during welding, so the stud thread from bottom to top can be obtained after welding, which is suitable for use scenes with high effective thread length..

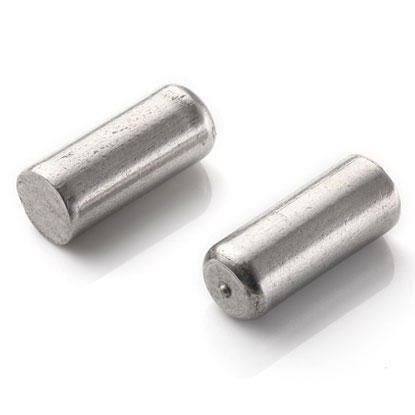

Drawn Arc Unthreaded Stud UD
Sinoars UD unthreaded studs according to ISO 13918. UD studs are available in low carbon steel 4.8, stainless steel SUS304 A2-50 and SS316L A2-70. Otherr material are available upon request.

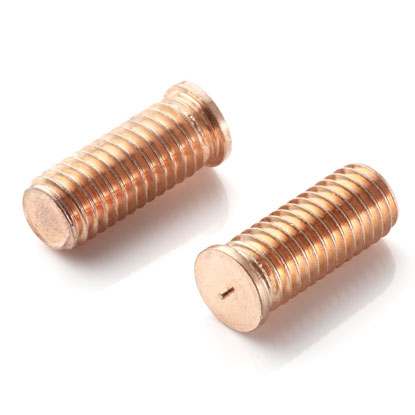

Capacitor Discharge Threaded Stud PT
Sinoars PT capacitor discharge threaded stud are designed to be welded to thin metal material by tip ignition process. It has flange that can produce a grater weld strength than the thread area.

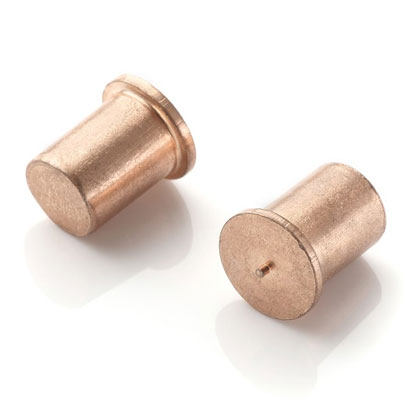

Capacitor Discharge Unthreaded Stud UT
Sinoars UT capacitor discharge threaded stud are designed to be welded to thin metal material by tip ignition process. It has flange that can produce a grater weld strength than the thread area. It’s uausally used as stop points or locators..
